Description

*This is ONLY for rear disc brake equipped 1990-1997 Accord Wagons*  (LX model drum brake conversion is still in development)

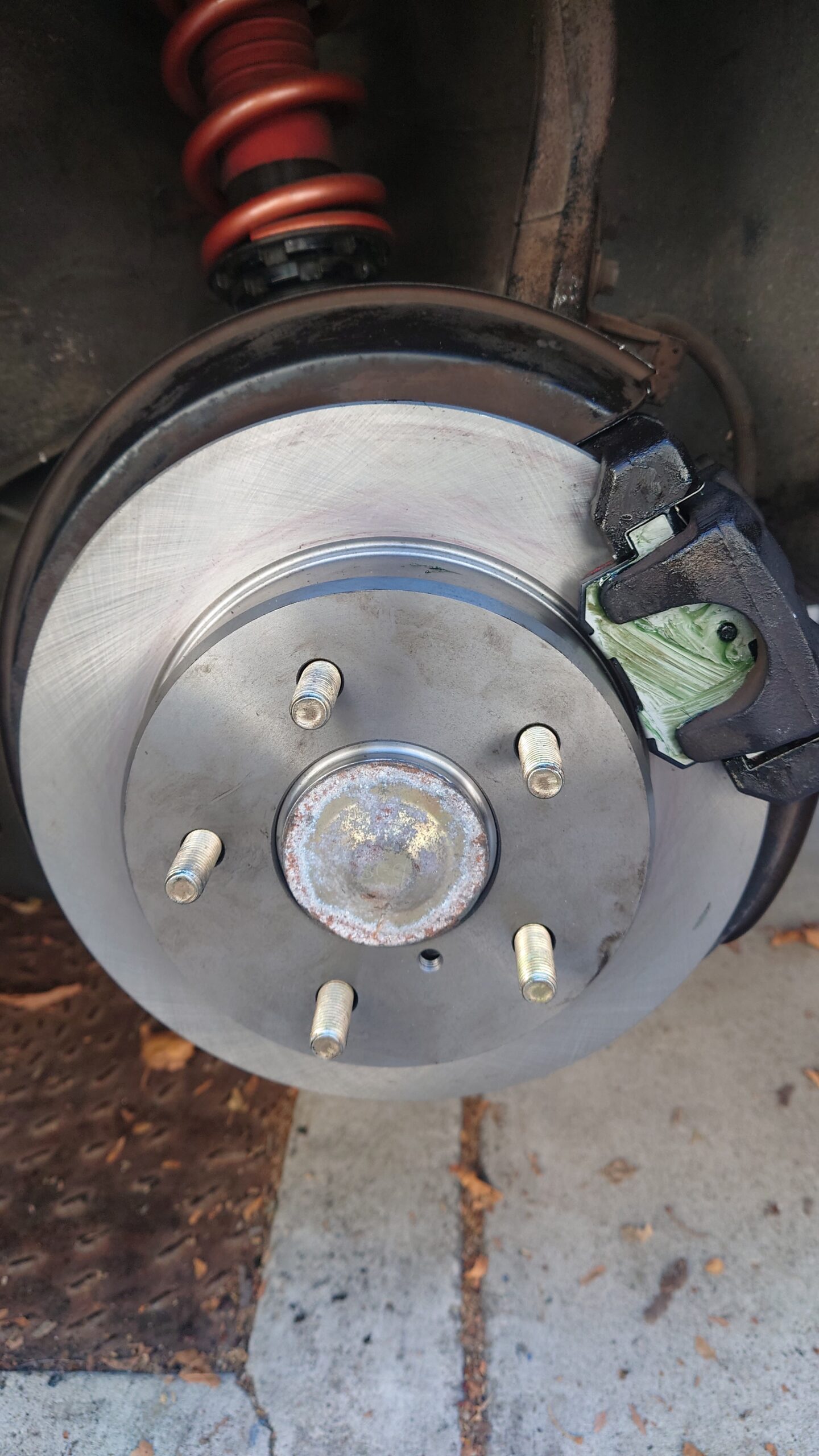

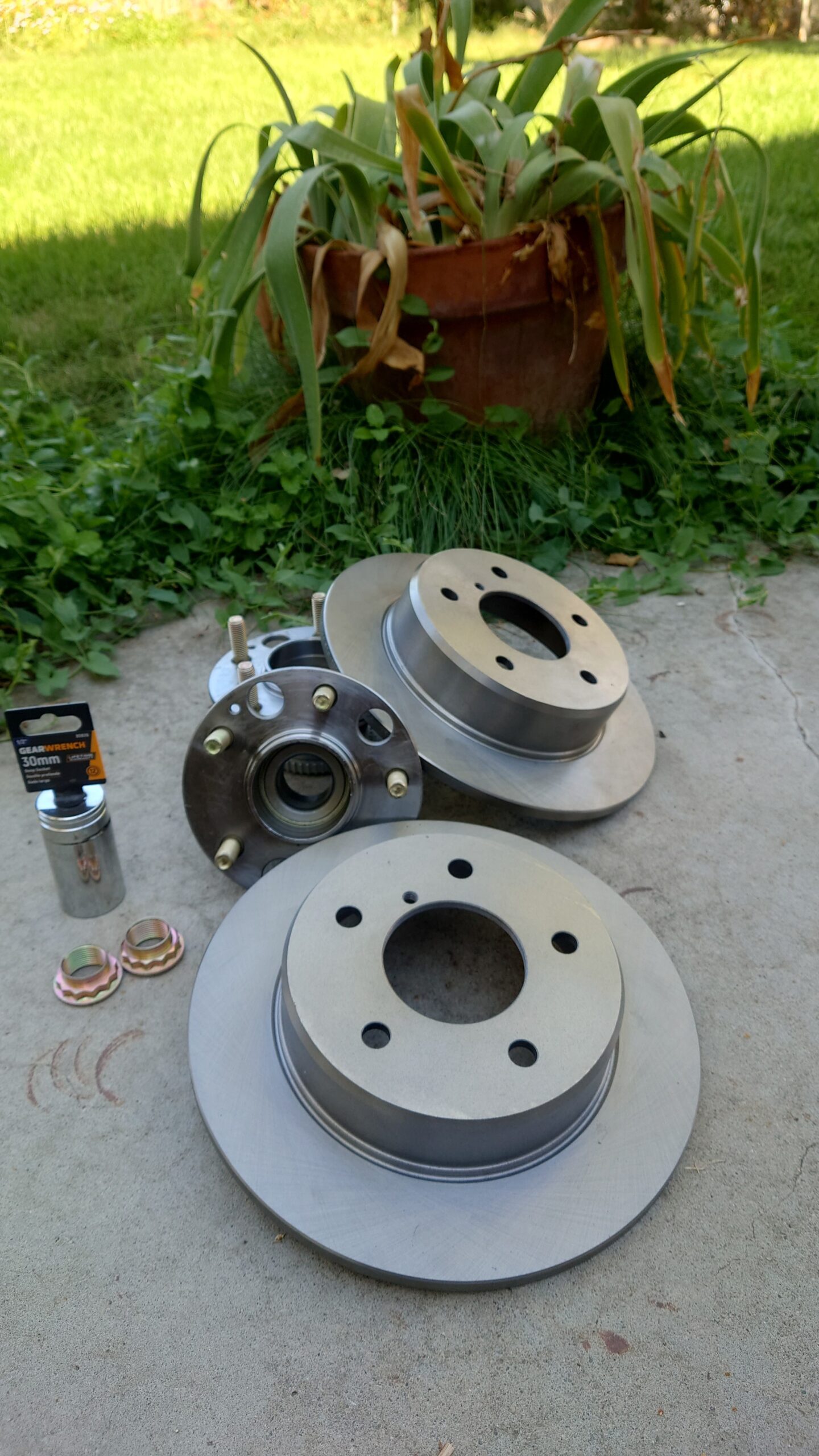

Using the same parts as our tried and tested Sedan/Coupe 5 Lug Swap, this wagon version takes into account the larger rear spindle shaft, but still has the same high quality parts content.  We include the rotors you will need (available in either a blank finish, or drilled and slotted), as well as the shorter nut and even the 30mm 12 point socket required for the rear spindle nut.   The only part you will need to reuse besides the knuckle and your rear brakes is your OEM Honda safety washer.

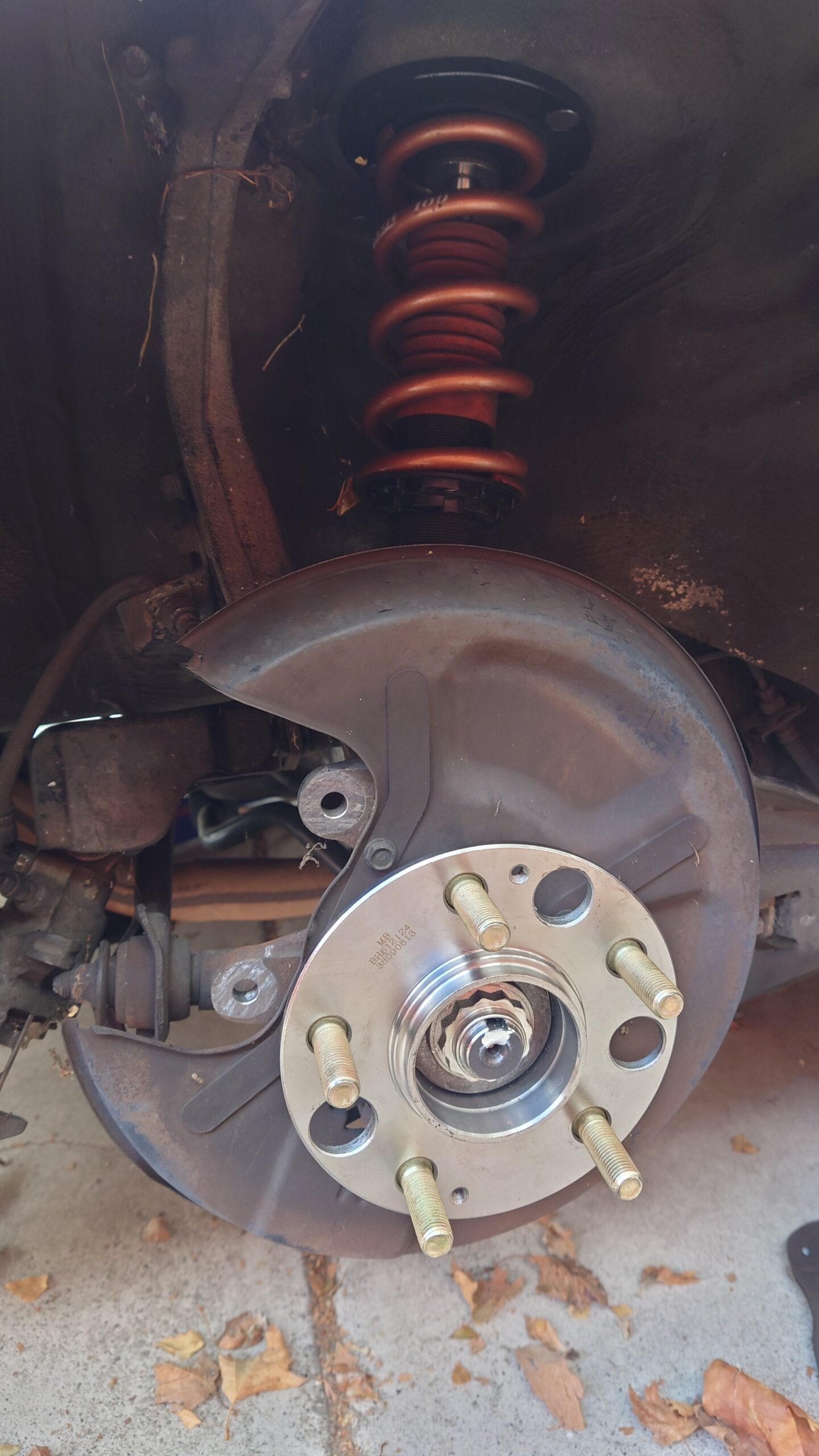

Tired of scouring junkyards or eBay or the forums for parts?  Then having to ship knuckles halfway across the country, only having to replace wheel bearings?  All in the hopes of finding a reasonably good set that isn’t rusted, with a bent knuckle, or have thousands of miles on them?  Then still having to put in new studs, or press on some new bearings?  Again, FFC has you covered.  Just as we did with our ROH Conversion for 4-lug, our 5-lug wheel hub and bearing combo is the answer!!  Everything is a perfect fit.  You get brand new hubs (with brand new studs pressed in) paired with brand new wheel bearings up front.  In the rear, you also get new hubs with new studs with new integral bearings.  Down the line, if you need to replace the front wheel bearings?  Just drop into your local parts store and order up some 1990-1997 Accord front wheel bearings, and you are set!  If you need to replace the rear wheel bearings?  RA1 Odyssey rear wheel hubs.  Out kit is designed to accept OEM parts as replacements, there is absolutely no downside to this conversion.

While we are happy to pair this 5-lug conversion with our 324mm rotors and RL calipers for a big brake conversion, you can take these hubs and run brakes as small as OEM diameter (10.2″).  Want to run Legend 2-piston front calipers?  Or NSX front calipers?  Any of those are an option, and we are happy to help you source the right rotors to fit under your 15″ (or larger) wheels.  Order a conversion, drop us a line, and we can help you.  All new high-graded hardware is included with each purchase.

(Pricing is for a pair of front hubs and bearings already pressed and ready to install, front wheel bearing bolts, front CV nuts, rear hubs, rear stub nut, socket, and rear rotors)

To reuse your stock Accord CB/CD calipers and brackets, the rotors to obtain are 2002-2006 Acura RSX Base Model front rotors, and use the included machined rear rotors out back.

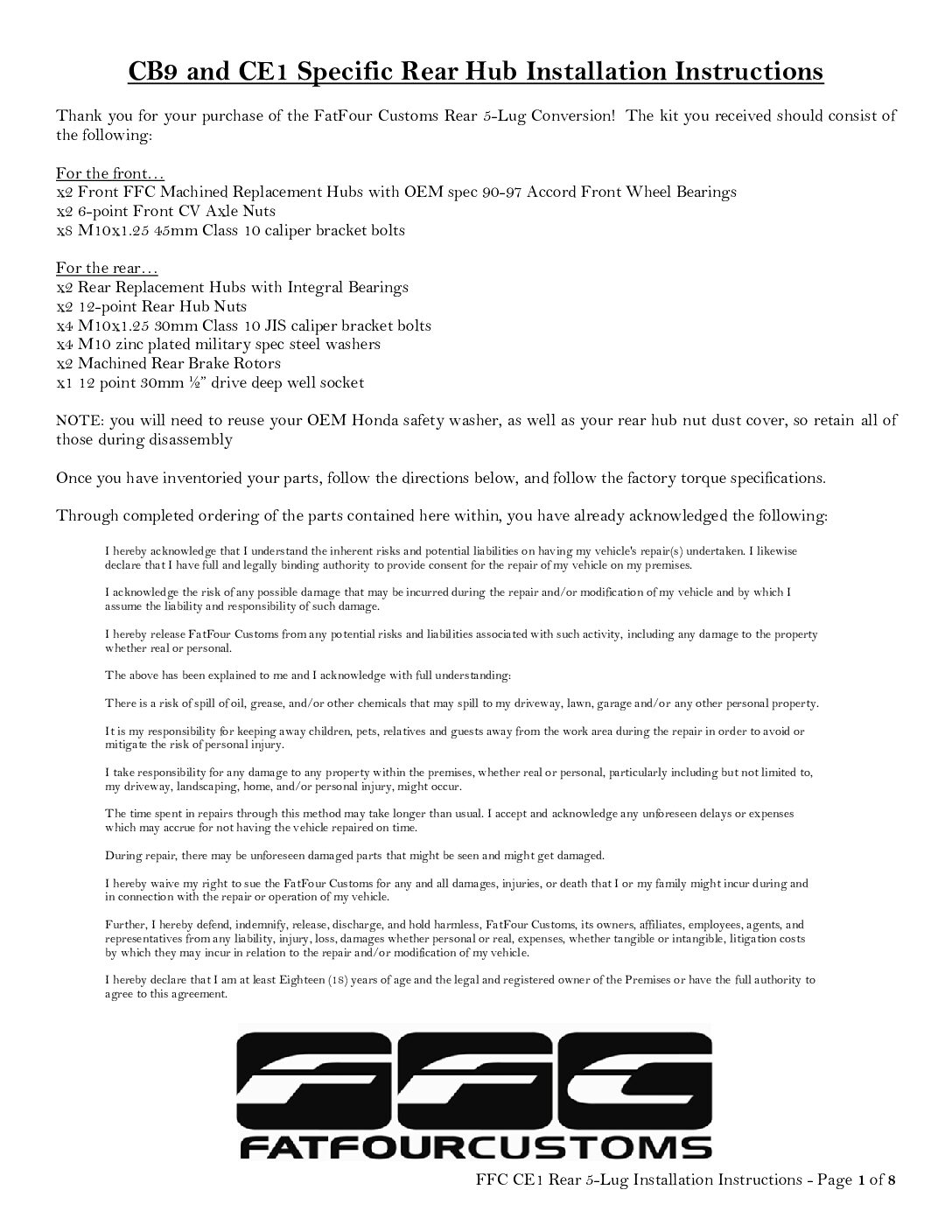

Instructional Guide: CB9-and-CE1-Specific-Rear-Hub-Installation-Instructions.pdf
