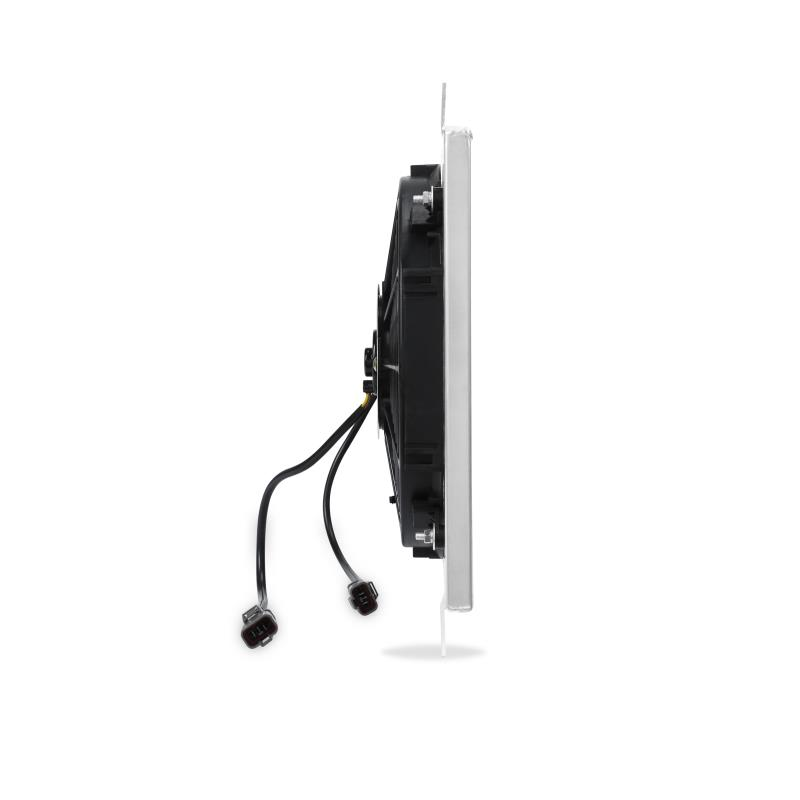

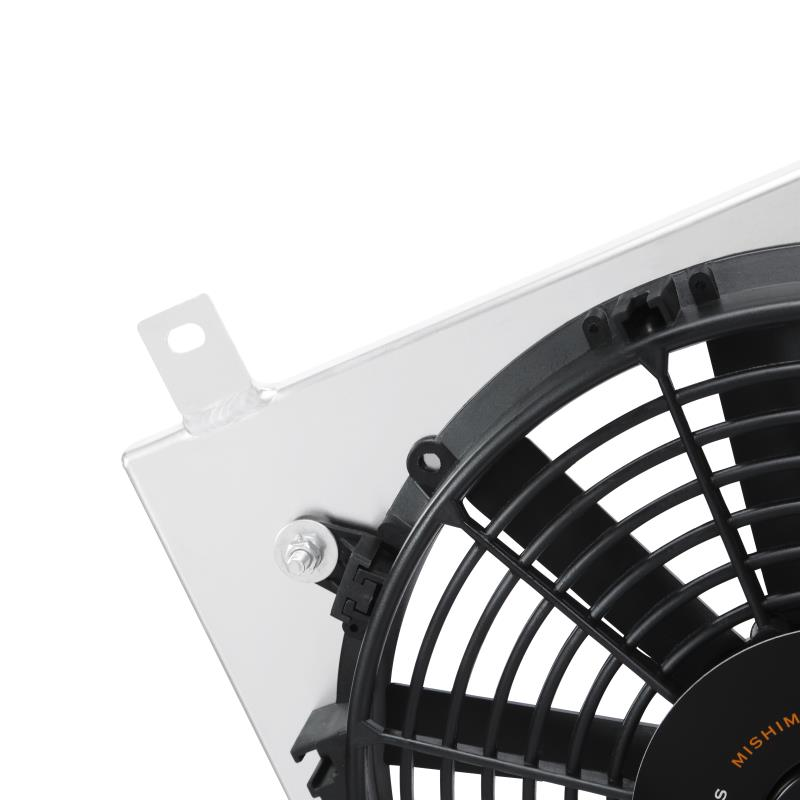

Mishimoto Performance Electric Fan Shroud Kit
Original price was: $306.92.$222.00Current price is: $222.00.
Available on backorder
Description
The Mishimoto Honda Prelude aluminum fan shroud kit will considerably improve engine cooling functions and the overall performance of your vehicle. All Mishimoto fan shrouds are significantly lighter than standard fan shrouds and are a direct stock fit. A Mishimoto fan shroud will effectively drive heat out of the engine bay and deliver a significant amount of cool air to your Prelude radiator. The fan shroud also serves another very important purpose: securing the fan blades. The fan shroud will keep the fan blades in place, which otherwise could potentially damage other essential components in your engine.All Mishimoto aluminum fan shrouds include an adhesive protective strip. This adhesive-backed foam strip seals any remaining gap between the fan shroud and radiator so that the fans are only moving air that has passed through the radiator core as opposed to pulling in air from the engine bay, resulting in improved cooling efficiency.

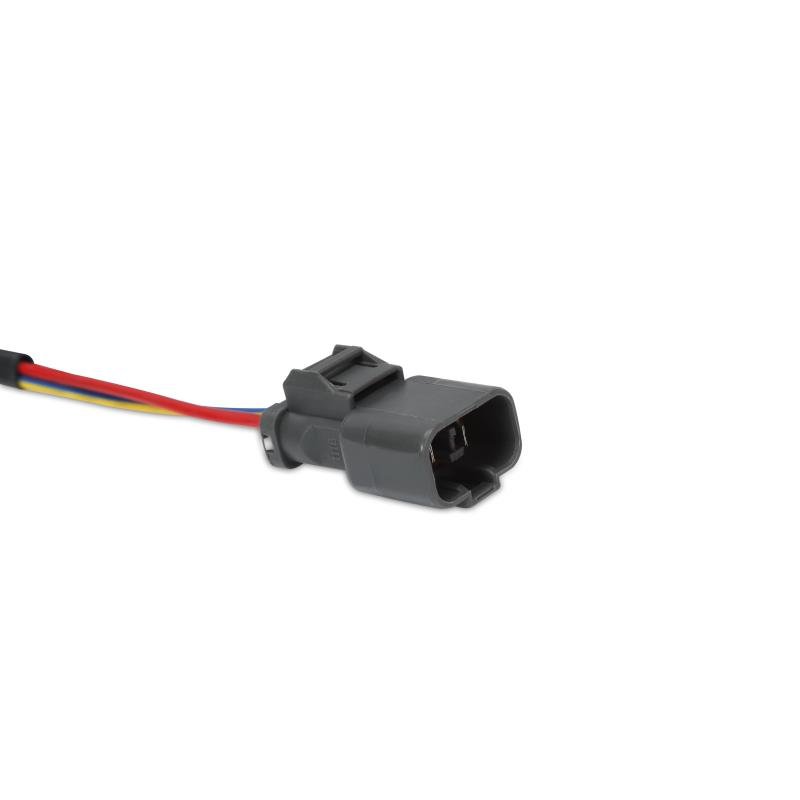

- Includes factory plugs for easy installation
- Fits both stock and Mishimoto radiators
- Maximizes airflow
- Includes two Mishimoto slim fans, each over 900 CFM
- Includes all mounting hardware
- Polished aluminum finish
- Mishimoto Lifetime Warranty
PURCHASE INCLUDES
(1) Aluminum Fan Shroud
(2) 12″ Slim Electric Fan
Mishimoto Lifetime Warranty
Product Specifications
| Maximum Fan CFM: | 1,866 cfm |
| Fan Quantity: | Dual |
| Fan Diameter (in): | 12.000 in. |
| Height (in): | 16.600 in. |
| Width (in): | 26.600 in. |
| Thickness (in): | 3.500 in. |
| Number of Blades: | 10 blades |
| Maximum Fan RPM: | 2,095 rpm |
| Blade Material: | Plastic |
| Blade Color: | Black |
| Shroud Color: | Natural |
| Shroud Material: | Aluminum |
| Amp Draw: | 5.70 amps |
| Air Conditioning Relay Included: | No |
| Mounting Brackets Included: | Yes |
| Mounting Hardware Included: | Yes |
| Quantity: | Sold as a kit. |
| Notes: | Amp draw is listed for one fan. CFM is listed for two fans. |
Additional information
| Weight | 11 lbs |
|---|---|
| Dimensions | 30 × 20 × 6 in |
| Vehicle | 97-99 Acura CL |
